Comparing nozzle angles and spray widths for Carbon BEE system configuration - Part 10a.

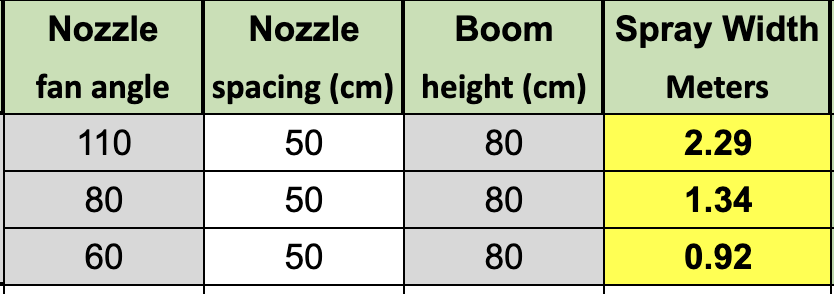

This is just to follow on with the discussion relating to nozzle spray widths. Let's compare the spray widths of 110°, 80° and 60° nozzles.

This is to help explain why 110° nozzles in isolation (without overlap), result in lower than expected rates. The same flow volume spread over a wider footprint. Also why we only recommend 60° or 80° nozzles on 50cm spacings

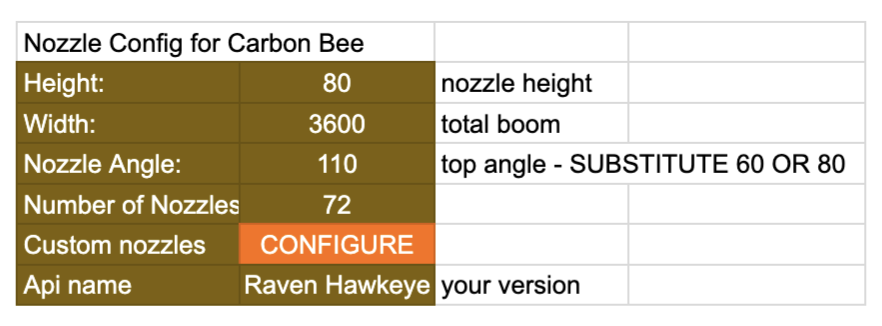

So the initial set up, if it was for 110° nozzles should look like this and you should not be seeing any isolated activations which can only occur if a lesser default value is in the setup configuration.

If this affects you, it will be a good idea to contact your installer and clarify and alter it if necessary. They can do this remotely via the cloud service.

Regards,
Dave Young

fantasticnozzles.com.au
1-800-920-312

Disclaimer - There may be other systems under development in Australia or information about potential improvements from manufacturers about which I am unaware. If any such information is available, please contact me and I will share it.
